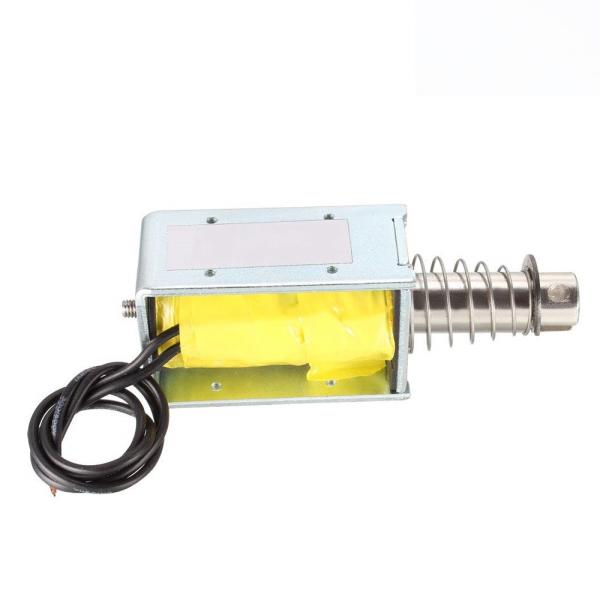

Open Frame Linear Motion Push Pull Solenoid Electromagnet DC12V 24V

Open Frame Type Linear Motion DC Push Pull Type Solenoid Electromagnet DC24V 12V

Product Description

【FEATURE】- DC 24V 1.5A 36W 15N Force 10mm Stroke Push Pull Solenoid Electromagnet
【GOOD DESIGN】- Push pull Type, linear motion,open frame, plunger spring return, DC solenoid electromagnet.
【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity
【NOTED】- As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,auto door lock,etc.

Note:

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not beelectrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damaged the electromagnet

ODM/OEM Order Notes
1 Voltage/current required for solenoid valve ?
2 Form factor What is the required size?
3 Please provide solenoid valve needs air flow or other use flow rate .
4 Solenoid valve operation time after demand energization and power-off time after completion of the operation, (energization and power-off time of a single operation are cycles)
5 Whether there are special requirements for the use of ambient temperature or waterproofing and chemical resistance
6 Appearance of salt spray test required or not (regular 24 hours)
7 Solenoid valve seal pressure, valve opening size and controlled substances (water, air, gas, oil)
8 Are there any other requirements?
9 Sample quantity required, cycle time (regular 3 days / custom 4 weeks or more depending on the actual situation), estimated quantity of post-production, how long to place the order, typical daily capacity is 5K .
